Righton unique face-to-face, high-precision and reliable Japan made latest advance subjective measurement system.
- Refractor (with / without LED)
- High-precision lenses and wider measuring range (-32D to +33D) Main body is 24% smaller than conventional model which allows easier view of patient's face through the wide space between lens chamber.
- Hand-held remote control
- Remote control unit offers individual keys for control of both refractor and charts. Using chart keys enables direct control of chart system. Hand-held wireless remote control unit enables control of RV-II from 8 meters away, allowing operator to point directly to chart contents.
- Touch type table control unit
- Can be used with both types of refractor or in combination with hand-held remote control unit.
- Printer / Power box
- Power box is 40% smaller than the conventional model and has a lower power consumption of only 80VA. New design compact and easy-to-use printer separate from power box
- Preset 6 type subjective test program
- With preloaded the most advance subjective test program, it suits most of the user needs in any scene.
Flexible combination to suit all needs, budgets and locations.
Variations of the RV-II system can be made using a combination of refractor (with/without LED), remote control unit, table control unit and printer depending on needs, budget and installation location.
| Combination |  Refractor (with LED) |
 Refractor (without LED) |
 Table Control Unit |
 Hand-held remote control unit |
 Compact power box |
 Printer |
|---|---|---|---|---|---|---|
| 1 | ◯ | - | - | ◯ | ◯ | ◯ |
| 2 | - | ◯ | ◯ | - | ◯ | ◯ |
| 3 | ◯ | - | ◯ | - | ◯ | ◯ |
| 4 | ◯ | - | ◯ | ◯ | ◯ | ◯ |
Options
- Data transfer by i Media
- Barrier FREE data communication by utilizing Infrared and RS232C ports. i-Media is capable of communicating with most of the Righton's conventional devices.
- Special Table Top
- Budget and space-saving solution. Can be used with the refractor on a regular power table.
Specifications
- Power measurement
-
- Spherical lens power
- －34.50 - ＋32.00D
0.25D step (0.125D/0.25D/1D) - Cylindrical power
- －7 - ＋7D
0.25D step (0.25D/1D) - Cylinder axis
- 0 - 180°
5 steps (1°/5°/45°) - Prism power
- 0△ - 20△
0.5△ step (0.25△/0.5△/1△)
- Cross cylinder
- Auto cross cylinder : ±0.25D
Jackson cross cylinder : ±0.25D/±0.5D
- Program
- Program 1 (standard program)
Program 2 (basic program)
Speedy program
Only with control box
21-point eye examination (steps #7 - #21)
MCH Pola test
ADD power correction program
- Dimensions
(W) x (D) x (H)
Weight -
- Refractor main body
- 388 × 110 × 268 mm
5 kg - Power box
- 140 × 59 × 230.5 mm
1.1 kg - Control box
- 200 x 183 x 218 mm
2 kg - Controller
- 111.7 x 47.7 x 231.7 mm
300 g - Printer
- 150 x 62 x 100 mm
600 g - i-Media
- 139 x 22 x 40 mm
100 g
- * 24' High resolution LCD screen
- * Chart can be operate and synchronize with RV-II combined Remote controller and Table Controller
- * 2m - 8m selectable reading distance.
- * Choose from 3 type of children's chart
- * Over R/G is possible
- * Charts below can operate by using exclusive single remote controller
Specifications
- Model
- L40P24
- Screen type
- LCD 1920 x 1080 pixel
- Size
- 24"
- Max contrast
- 1000:1
- Typical Luminosity
- 300 cd/m2
- Reading distance
- 2 to 8 meter
- L40P24 power supply
- 100/240V - 50/60Hz
- Screen power supply
- 12V DC
- Consumption
- 60W
- Protection against electric shock
- Class I
- Size
- 70(W) x 465(H) x 695(L) mm
- Weight
- 8 Kg
- Connection with RV-II
- Infrared
- Sound output
- Embedded speaker
- Remote Control
-
- Power Supply
- AA 1.5V battery x 2
- Dimension
- 55(W) x 35(H) x 175(L) mm
- Weight
- 80g (w/o battery)
- * 24' high resolution LCD screen
- * Chart can be operate and synchronize with RV-II combined Remote
controller and Table Controller - * Select from Standard or Allen children's chart
Specifications
- Model
- RG24 RT
- LCD Type
- 24 inch WUXGA TFT LCD
- Resolution
- 1920 x 1080 pixel
- Chart window size
- 531.36(W) x 298.89(H) mm
- Brightness
- Max 300 cd/m2
- Chart available

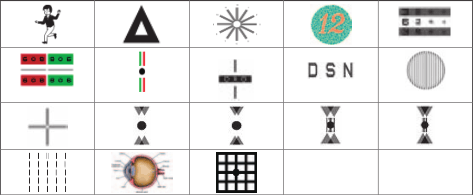

- Landolt, Snellen, English, Arabic, Numerical, color blindness, special chart, image, etc
- Selectable distance
- 1.5 - 8m (0.25 step)
- Memory type
- IDE type Flash Disk 4GB
- Power supply
- DC 12V/6.66A
- Power sconsumption
- Less than 80W
- Communication
- Wireless: Infrared
Wired: RS232-C
- Dimension / Weight
- 621(W) x 428(H) x 76(D) mm / 12Kg
- Remote Control
- 69.5(W) x 235.5(H) x 25(D) mm / 200g
rechargeable battery
- Data Interface
- USB, RS232
- Standard accessory
- Wall mount bracket
- Optional accessory
- Poll type floor stand, red/green glasses, Pola glasses
